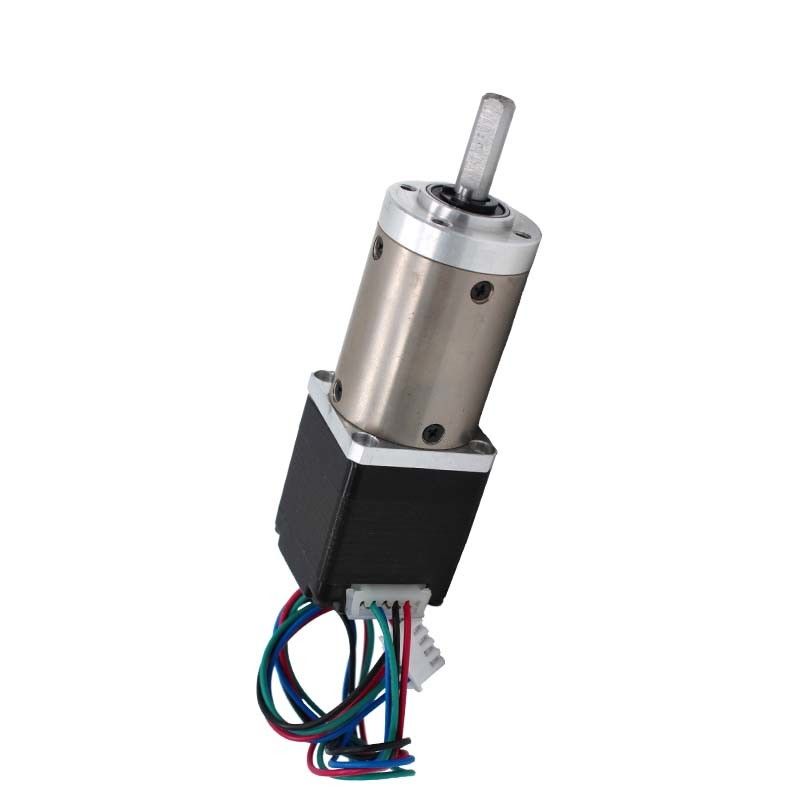

28mm Round Flange Small Precision Planetary Gearbox With Hybrid Motor
Stepper motor
Step motor, also known as pulse motor, is based on the most basic electromagnet principle. It is a kind of electromagnet that can rotate freely. Its action principle is to generate electromagnetic torque based on the change of air gap permeability.
Stepper motor is an open-loop control motor that converts electrical pulse signals into angular or linear displacement.
Stepper motor is a kind of induction motor, its working principle is the use of electronic circuit, the direct current into
time-sharing power supply, polyphase timing control current, using this current to power stepper motor.
Normally, the driver is the time-sharing power supply for stepper motor, polyphase timing controller.
As an executive component, stepping motor is one of the key products of mechatronics. With the development of microelectronics and computer technology, the demand for stepping motor is increasing day by day, and it is applied in various fields of national economy.
1. Genernal Specification:
| Housing Material | Metal |
| Bearing at Output | Ball Bearings |
| Max.Radial Load(12mm from flange) | ≤100N |
| Max.Shaft Axial Load | ≤50N |
| Radial Play of Shaft (near to Flange) | ≤0.07mm |
| Axial Play of Shaft | ≤0.3mm |
| Backlash at No-load | 1.5° |
2. JQHS-28-1 Stepper Motor specification
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Rotor Inertia | Motor |
| /Phase | /Phase | /Phase | Weight | ||||||
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | Kg | |
| JQHS-28-1-1 | 1.8 | 45 | 0.95 | 3.4 | 1.2 | 750 | 6 | 12 | 44.5 |
| JQHS-28-1-2 | 1.8 | 45 | 0.95 | 4.6 | 1.8 | 900 | 6 | 18 | 50.5 |
3. Planetary Gearbox Specifications:
| Reduction ratio | 3.71 | 5.18 | 14 | 19 | 27 | 51 | 71 | 100 |
| Number of gear trains | 1 | 2 | 3 | |||||
| Length(L2) mm | 29 | 36.1 | 43 | |||||
| Max.rated torque kg.cm | 12 | 20 | 40 | |||||
| Short time permissible torque kg.cm | 40 | 60 | 120 | |||||
| Weight g | 75 | 97 | 119 | |||||
4. Typical Applications
5. Terms of trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
| Terms of payment | 100% T/T in advance for samples |
| Bulk quantity payment way can be negotited | |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Cartons /Pallets |
| Place of loading | Shanghai, Ningbo, etc. |
| Shipment carrier | Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
