Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: JIUQI
Certification: RoHS,ISO9001
Model Number: JQHS-35-1
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: $30~$50/PCS
Packaging Details: with export carton . Bulk order with pallets
Delivery Time: Trial orders :2 WEEKS Bulk orders: within 3 weeks
Payment Terms: T/T, Western Union,paypal
Supply Ability: 50000 PCS/MONTH
Type: |
Hybrid |
Phase: |
2 |
Voltage: |
1.2/2.8 |
Step Angle: |
1.8 Degree |
Current/phase: |
0.31/1.33 |
Suitable Motor: |
Nema14 Stepper Motor |
Highlight: |
Planetary Stepper Motor,Gearebox,Gear Reducer |
Product Name: |
Hybrid Motor With Planetary Gearbox |
Type: |
Hybrid |
Phase: |
2 |
Voltage: |
1.2/2.8 |
Step Angle: |
1.8 Degree |
Current/phase: |
0.31/1.33 |
Suitable Motor: |
Nema14 Stepper Motor |
Highlight: |
Planetary Stepper Motor,Gearebox,Gear Reducer |
Product Name: |
Hybrid Motor With Planetary Gearbox |

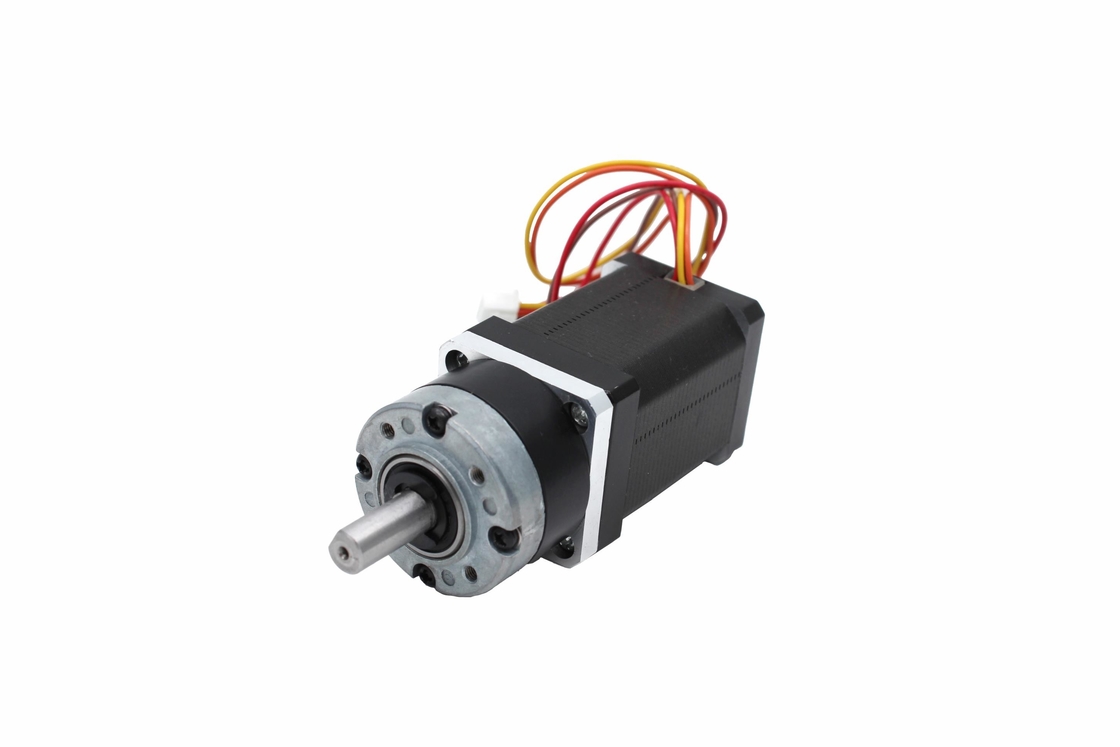

35MM Planetary Gearbox Nema 14 High Precision Hybrid Motor For Automation Control
Remarks:
We are the source manufacturer, complete product model, rich production experience, can accept drawings custom stepper motor (including shaft processing, outlet mode, etc.), motor wiring is optional (stock has ordinary line, 1M DuPont line, 1M XH 2.54 cable , 1M 2510 cable)
1. Genernal Specification:
| Housing Material | Metal |
| Bearing at Output | Ball Bearings |
| Max.Radial Load(10mm from flange) | ≤100N |
| Max.Shaft Axial Load | ≤50N |
| Radial Play of Shaft (near to Flange) | ≤0.07mm |
| Axial Play of Shaft | ≤0.3mm |
2. JQHS-20-1 Stepper Motor specification
| Model No. | Rated Voltage | Current | Resistance | Inductance | Holding Torque | # of Leads | Rotor Inertia | Motor Weight |
| /Phase | /Phase | /Phase | ||||||
| V | A | Ω | mH | g.cm | No. | g.cm | Kg | |
| JQHS-35-1-1 | 1.2 | 0.31 | 38.5 | 21 | 1.6 | 6 | 35 | 0.22 |
| JQHS-35-1-2 | 2.8 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | 35 | 0.22 |
3. Planetary Gearbox Specifications:
| Reduction ratio | 3.71 | 5.18 | 14 | 19 | 27 | 51 | 71 | 100 | 139 |
| Number of gear trains | 1 | 2 | 3 | ||||||
| Length(L2) mm | 27 | 34.2 | 41.1 | ||||||
| Max.rated torque kg.cm | 20 | 30 | 50 | ||||||
| Short time permissible torque kg.cm | 60 | 90 | 180 | ||||||
| Efficiency | 90% | 81% | 73% | ||||||
| Backlash at no-load | 0.5° | 1.0° | 1.5° | ||||||
| Weight g | 158 | 197 | 236 | ||||||
4. Dimension
5. Typical Applications
6. Terms of trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
| Terms of payment | 100% T/T in advance for samples |
| Bulk quantity payment way can be negotited | |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Cartons /Pallets |
| Place of loading | Shanghai, Ningbo, etc. |
| Shipment carrier | Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
7. Our promise to our Customers:
