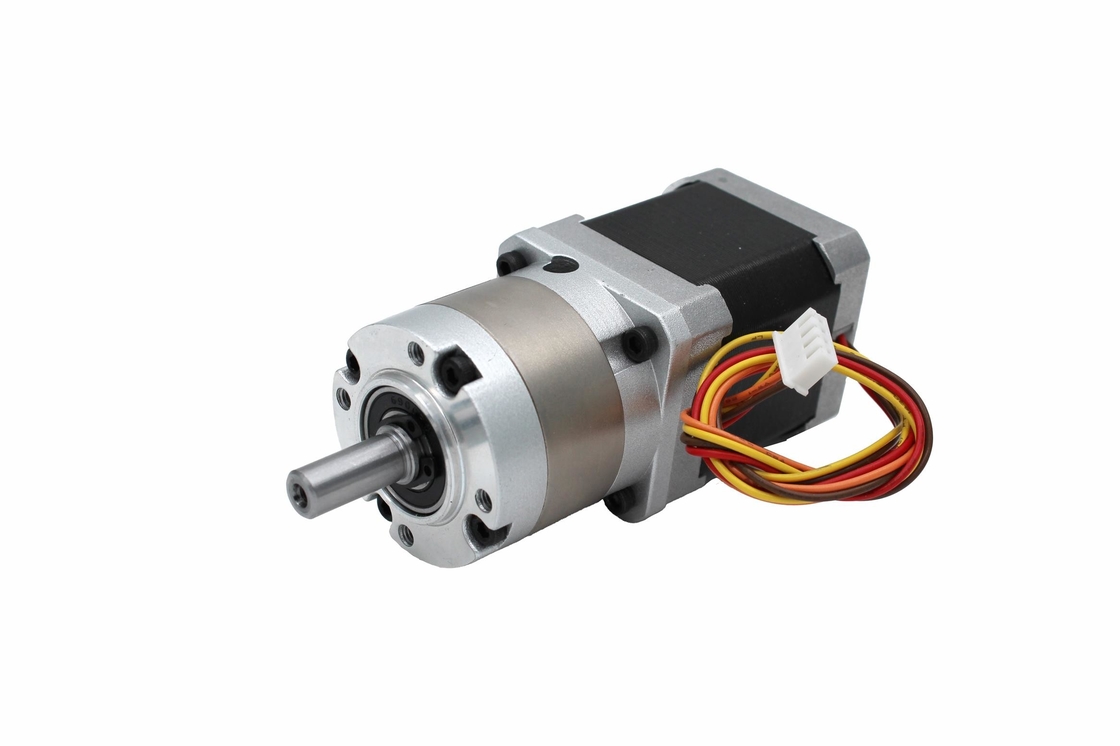

NEMA 14 35mm High Torque Hybrid Stepper Motor With Planetary Gearbox
Accessories
Wires, Connectors, Encoder, Brake, etc (Optional)
Typical Application
3D printer, textile industry equipment, security camera, moving head light, medical equipment, graph plotter, CNC machine, marking machine, biochemical analyzer, etc,
Note
Motor specs such as voltage, speed, torque, shaft can be customized. Please contact us if didn't find a suitable motor from our specifications.
1. Genernal Specification:
| Housing Material | Metal |
| Bearing at Output | Ball Bearings |
| Max.Radial Load(10mm from flange) | ≤100N |
| Max.Shaft Axial Load | ≤50N |
| Radial Play of Shaft (near to Flange) | ≤0.07mm |
| Axial Play of Shaft | ≤0.3mm |
2. JQHS-20-1 Stepper Motor specification
| Model No. | Rated Voltage | Current | Resistance | Inductance | Holding Torque | # of Leads | Rotor Inertia | Motor Weight |
| /Phase | /Phase | /Phase | ||||||
| V | A | Ω | mH | g.cm | No. | g.cm | Kg | |
| JQHS-35-1-1 | 1.2 | 0.31 | 38.5 | 21 | 1.6 | 6 | 35 | 0.22 |
| JQHS-35-1-2 | 2.8 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | 35 | 0.22 |
3. Planetary Gearbox Specifications:
| Reduction ratio | 3.71 | 5.18 | 14 | 19 | 27 | 51 | 71 | 100 | 139 |
| Number of gear trains | 1 | 2 | 3 | ||||||
| Length(L2) mm | 27 | 34.2 | 41.1 | ||||||
| Max.rated torque kg.cm | 20 | 30 | 50 | ||||||
| Short time permissible torque kg.cm | 60 | 90 | 180 | ||||||
| Efficiency | 90% | 81% | 73% | ||||||
| Backlash at no-load | 0.5° | 1.0° | 1.5° | ||||||
| Weight g | 158 | 197 | 236 | ||||||
4. Dimension
5. Typical Applications
6. Terms of trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
| Terms of payment | 100% T/T in advance for samples |
| Bulk quantity payment way can be negotited | |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Cartons /Pallets |
| Place of loading | Shanghai, Ningbo, etc. |
| Shipment carrier | Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
