Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: JIUQI
Certification: RoHS,ISO9001
Model Number: JQHS-42-1
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: $30~$50/PCS
Packaging Details: with export carton . Bulk order with pallets
Delivery Time: Trial orders :2 WEEKS Bulk orders: within 3 weeks
Payment Terms: T/T, Western Union,paypal
Supply Ability: 50000 PCS/MONTH
Type: |
Hybrid |
Motor Length: |
34 |
Leads: |
4 |
Step Angle: |
1.8 Degree |
Current/phase: |
1.5 |
Resistance: |
1.7±10% |
Highlight: |
Planetary Stepper Motor,Gearebox,Gear Reducer |
Product Name: |
42MM Hybrid Motor |
Type: |
Hybrid |
Motor Length: |
34 |
Leads: |
4 |
Step Angle: |
1.8 Degree |
Current/phase: |
1.5 |
Resistance: |
1.7±10% |
Highlight: |
Planetary Stepper Motor,Gearebox,Gear Reducer |
Product Name: |
42MM Hybrid Motor |

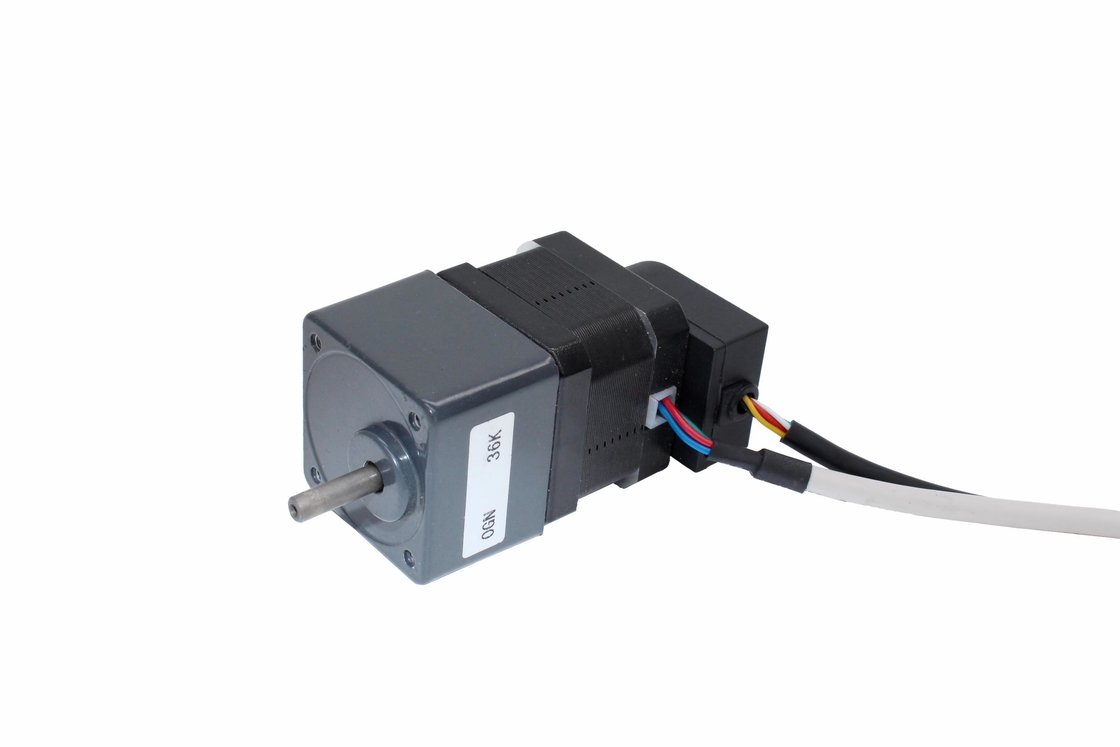

42MM High Efficiency Low Backlash Precision Planetary Gearbox NEMA 17 Motor
1. JQHS-42-1 Stepper Motor specification
| Model No. |
Motor Length |
Current | Resistance | Inductance | Holding Torque | # of Leads | Detent torque | Motor Weight |
| /Phase | /Phase | /Phase | ||||||
| MM | A | Ω | mH | N.m | No. | N.m | Kg | |
| JQHS-42-1-1 | 34 | 1.8 | 1.7 | 2.2 | 24 | 4 | 0.013 | 0.28 |
2. Planetary Gearbox Specifications:
| Ratio | 3.6 | 7.2 | 9 | 10 | 18 | 36 | |
| No. of gear trains | 2 | 3 | 4 | ||||
| Nominal torque | 2.5N.m | ||||||
| Ultimate torque | 3.0N.m | ||||||
| Efficiency | 81% | 72% | 65% | ||||
| Backlash | 0.6 | 0.4 | |||||
| Torque (at 300rpm) | 0.73 | 1.45 | 1.8 | 2.0 | - | - | |
| Speed |
83 |
41 | 33 | 30 | - | - | |
3. Dimension :
4. Typical Applications
5. Terms of trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
| Terms of payment | 100% T/T in advance for samples |
| Bulk quantity payment way can be negotited | |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Cartons /Pallets |
| Place of loading | Shanghai, Ningbo, etc. |
| Shipment carrier | Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
6. Our promise to our Customers:
