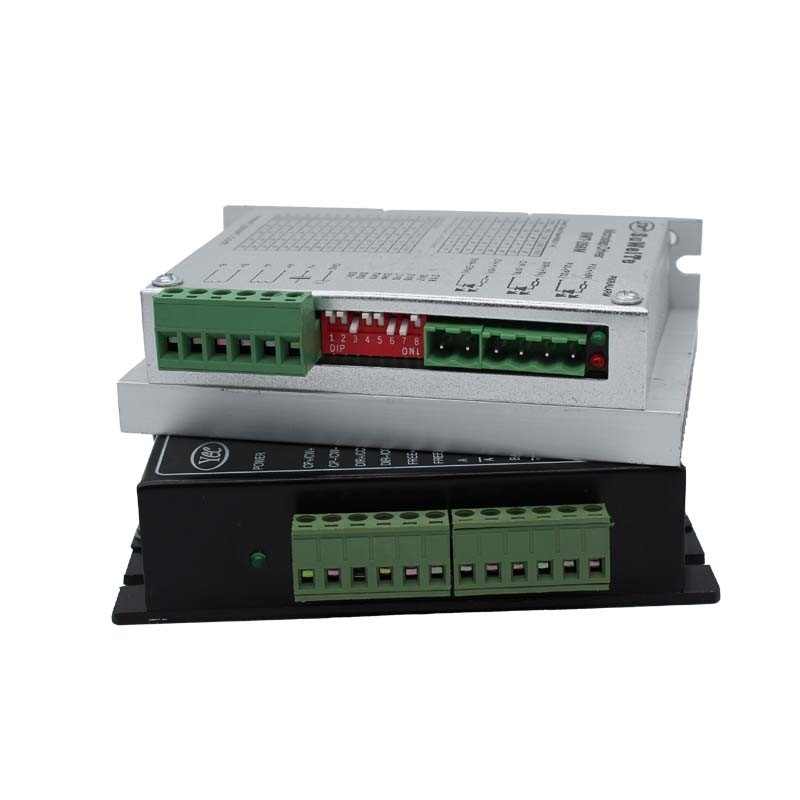

Cnc 2 Phase Stepper Motor Controller 24v 12v 36v

Name: Cnc 2 Phase Stepper Motor Controller 24v 12v 36v
Brand: JIUQI
SKU: DM422
Price: 8 USD
Availability: InStock
Rating: 4.7 (115 reviews)

Product Details

Place of Origin: Jiangsu, China (Mainland)

Brand Name: JIUQI

Certification: RoHS,ISO9001

Model Number: DM422

Payment & Shipping Terms

Minimum Order Quantity: 100PCS

Price: $8~$30/Unit

Packaging Details: with export carton or can be customized

Delivery Time: Trial orders :2 WEEKS Bulk orders: within 3 weeks

Payment Terms: T/T, Western Union,paypal

Supply Ability: 100000 PCS/MONTH

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    24v stepper motor driver, 12v Stepper Motor Driver, Stepper Motor Controller 24v


Control Mode:	Pulse + Direction	Voltage:	12V
Weight:	180g	Material:	Plastic
Highlight:	Brushless Dc Motor Controller ,4 Wire Stepper Motor Controller	Product Name:	Motor Driver

Control Mode:	Pulse + Direction
Voltage:	12V
Weight:	180g
Material:	Plastic
Highlight:	Brushless Dc Motor Controller ,4 Wire Stepper Motor Controller
Product Name:	Motor Driver

Description

Cnc 2 Phase Stepper Motor Controller 24v 12v 36v

ROHS Compliant Stepper Motor Controller 9V - 42VDC Motor Driver

We specialize in the production of various electronic components. Our mission is to provide customers with the best service, committed to establishing long-term cooperation with customers, looking forward to working with you.

1. Description:

Supply power voltage:DC12-36V(Max),Output:0.2A-2.2A
Current control: PID algorithm ,high speed and high torque output, low vibration ,low noise,low heating
Running current: 16 different current levels selectable
Control mode:Pulse +direction &Double pulse
Self Test
Protection: over voltage,under voltage, over current,open motor winding
Current reduce helt after 1 second when stop
Can startup 4 /6/8 lines stepper motors
High microstepping, 16 different microstepping levels selectable:200,400,800,1600,3200,6400,12800,25600,1000,2000,4000,5000,8000,10000,20000,25000step/rev

2. Specification:

Specification	DM422
Specification	Min	Type	Max	Unit
output voltage	0.2	-	2.2	A
Supply voltage	8	24	36	VDC
Control signal current	6	10	16	Ma
Step pulse frequency	0	-	300	KJz
Step pulse width	2	-	-	us
Direction signal width	100	-	-	us
Under Voltage protection	-	7.5	-	VDC
Under Voltage protection	-	42	-	VDC
Drive starting time	2	-	-	S
Insulation resistance	500			MΩ

3. Dimension:MM

4. Motor Diagram

5. Control signal connection

6. Swith selecting

Current setting: Microstepping setting:

7. Terms of trade

Terms of price	FOB,CIF,CFR,EXW,DDP,etc.
Terms of payment	100% T/T in advance for samples
Terms of payment	Bulk quantity payment way can be negotited
Warranty	12 months limited warranty once the items are delivered to the buyer.
Lead time	Usually within 2 weeks for trial orders, within 3 weeks for bulk orders.
Package	Cartons /Pallets
Place of loading	Shanghai, Ningbo, etc.
Shipment carrier	Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders.
Delivery time	Usually within 5 working days by Express 15-30 working days by vessel
