Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: JIUQI
Certification: RoHS,ISO9001
Model Number: 60KTYZ-JQ-5
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: $5~$8/PCS
Packaging Details: with export carton . Bulk order with pallets
Delivery Time: Trial orders :2 WEEKS Bulk orders: within 3 weeks
Payment Terms: T/T, Western Union,paypal
Supply Ability: 50000 PCS/MONTH
Frequency: |
50Hz/60Hz |
Voltage: |
220V/230V/240V/110V/120V |
Motor Diameter: |
60MM |
Motor Height: |
68MM |
Speed: |
30RPM |
Type: |
Synchronous Motor |
Highlight: |
60MM Geared Motor,220V Synchronous Motor,30RPM AC Synchronous Motor |
Product Name: |
Sychronous Motor |
Frequency: |
50Hz/60Hz |
Voltage: |
220V/230V/240V/110V/120V |
Motor Diameter: |
60MM |
Motor Height: |
68MM |
Speed: |
30RPM |
Type: |
Synchronous Motor |
Highlight: |
60MM Geared Motor,220V Synchronous Motor,30RPM AC Synchronous Motor |
Product Name: |
Sychronous Motor |

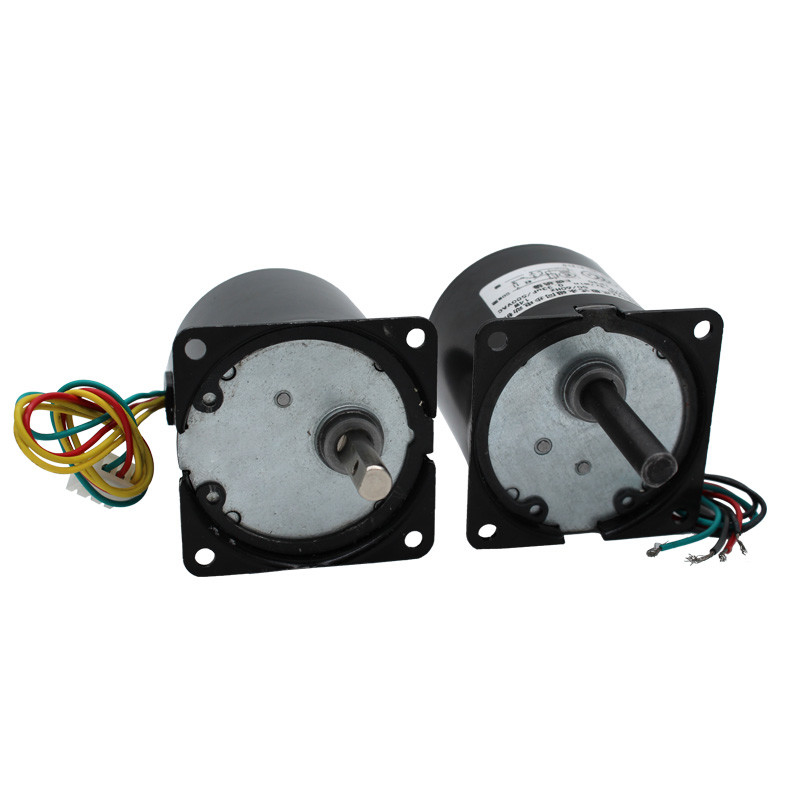

Dehumidifier Motor 60MM Synchronous Motor High Torque Customized Motor
1. Description:
Product Higholights
Note:
When the rotation direction is CW/CCW, the load reaches the rated torque, the electric machine will automatically reverse.
Note:
Please leave a message to tell us your choice of voltage, direction of rotation (CW / CCW;CW; CCW three type) and shaft type and size.
For example:
220v,50Hz(or 60Hz),2.5/3 RPM, CW, Type: TS
Note:
this motor is AC synchronous motor .
Please see the parameter table, for example you choose 2.5/3r/min.
If your country's frequency is 50Hz, the motor rotation speed is 2.5rpm/min.
If your country's frequency is 60Hz, the motor rotation speed is 3rpm/min
2. Specification:
| Rated voltage | 220V |
| Input power | ≤40 |
| Frequency | 60Hz |
| Insulation strength | E |
| Speed | 30RPM |
| Torque | 6KG.CM |
| Noise | ≤45 |
3. Mechanical Dimension:MM
4. Typical Applications
Electric screen
Electric oven
Ice machines
Food machine
Terrace monitor
5. Terms of trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
| Terms of payment | 100% T/T in advance for samples |
| Bulk quantity payment way can be negotited | |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Cartons /Pallets |
| Place of loading | Shanghai, Ningbo, etc. |
| Shipment carrier | Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
