Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: JIUQI
Certification: RoHS,ISO9001
Model Number: JQGM-370-65000
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: $3~$7.5/PCS
Packaging Details: with export carton . Bulk order with pallets
Delivery Time: Trial orders :2 WEEKS Bulk orders: within 3 weeks
Payment Terms: T/T, Western Union,paypal
Supply Ability: 200000 PCS/MONTH
Type: |
Gear Motor |
Voltage: |
6V/12V/24V |
Diameter: |
25MM |
Brush Type: |
Brush |
Speed: |
8500-10400RPM |
Shaft Type: |
Customized |
Type: |
Gear Motor |
Voltage: |
6V/12V/24V |
Diameter: |
25MM |
Brush Type: |
Brush |
Speed: |
8500-10400RPM |
Shaft Type: |
Customized |

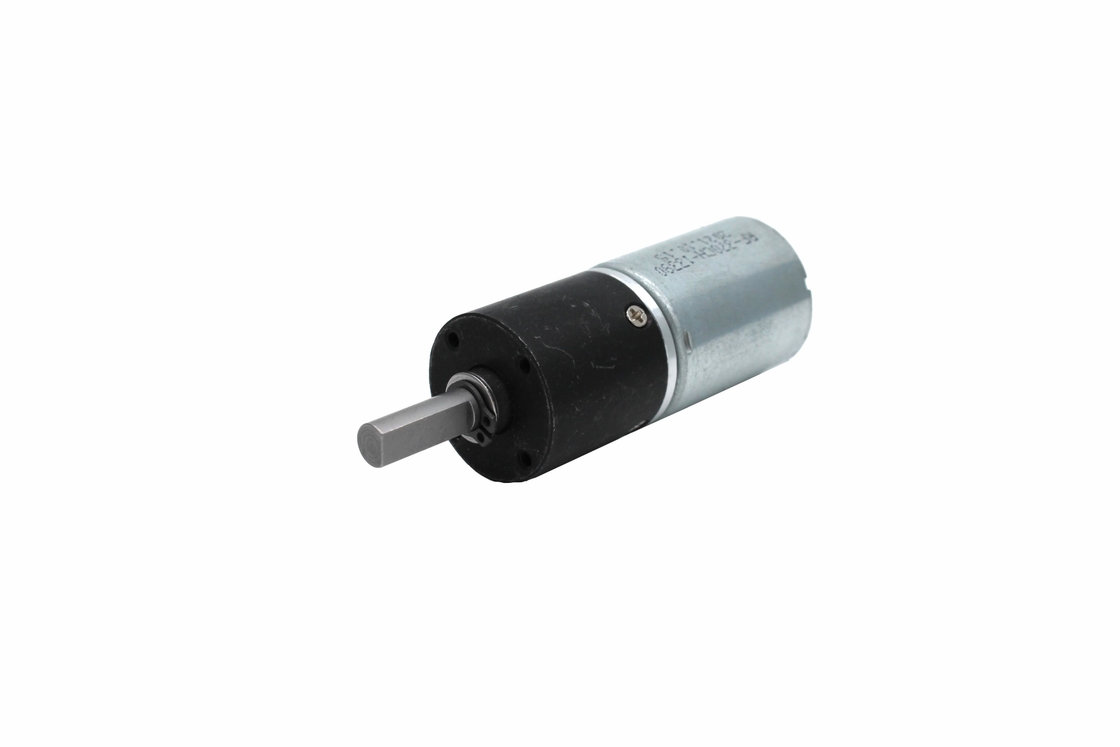

24RS370 Planetary Gearbox Motor 6V/12V/24V DC Motor With Metal Gearbox
Application :
Our prodcuts are widely used in aviation, tools, medical, robotics, tattoo machine,automation, safety lock, security and other fields to promote the development of key application systems worldwide.
1. Description:
Product Highlights
Motor Data:
| Motor Model | Rated Voltage | No-load | Load | Stall | |||||
| current | speed | current | speed | torque | output | torque | current | ||
| V | A | rpm | A | rpm | kg.cm | W | Kg.cm | A | |
| JQGM-370-65000 | 6 | ≤0.045 | 5000 | ≤0.24 | 4200 | 0.02 | 0.88 | ≥0.112 | ≥1.1 |
| JQGM-370-126000 | 12 | ≤0.042 | 6000 | ≤0.15 | 5000 | 0.02 | 1.05 | ≥0.108 | ≥0.98 |
| JQGM-370-1212000 | 12 | ≤0.09 | 12000 | ≤0.52 | 10300 | 0.028 | 2.96 | ≥0.177 | ≥2.5 |
| JQGM-370-246000 | 24 | ≤0.021 | 6000 | ≤0.11 | 5100 | 0.021 | 1.12 | ≥0.126 | ≥0.44 |
| JQGM-370-249000 | 24 | ≤0.043 | 9000 | ≤0.21 | 7800 | 0.027 | 2.2 | ≥0.182 | ≥0.95 |
Gearbox Data:
| Reduction stage | 4 | 5 | 6 | 7 | 8 |
| Reduction ratio |
20.4K |
35.8K,45K,50K |
79K ,99K,110K, 122K,127K |
217K,241K, 268K,298K,331K |
478K,531K,590K, 656K,729K |
| Gearbox length | 20.8 | 23.2 | 25.6 | 28 | 29 |
| Gearbox efficiency | 65% | 59% | 53% | 48% | 43% |
2. Mechanical Dimension:MM
3. Typical Applications
IA:
Smart Lock,Smart closetool,Auto-curtain,Robot vacuum,Dishwasher
Office Equipment:
Cash registers, printer, Paper shredder ,Projector
Medical Wquipment:
Trolley, Adjustable bed ,Medical pump ,Blood shaker
Business Equipment:
New retail device ,Vending machine ,Car zip,smart lamp
Industrial Equipment:
Automatic valve ,Automatic door switch
Personal care :
Hairclipper,Massage chair ,hair curler
|
|
|
IA |
Personal Care |
|
|
|
Robot |
Smart Lock |
4. Terms of trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
| Terms of payment | 100% T/T in advance for samples |
| Bulk quantity payment way can be negotited | |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Cartons /Pallets |
| Place of loading | Shanghai, Ningbo, etc. |
| Shipment carrier | Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
