Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: JIUQI
Certification: RoHS,ISO9001
Model Number: JQGM-030-610400
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: $3~$7.5/PCS
Packaging Details: with export carton . Bulk order with pallets
Delivery Time: Trial orders :2 WEEKS Bulk orders: within 3 weeks
Payment Terms: T/T, Western Union,paypal
Supply Ability: 200000 PCS/MONTH
Type: |
Gear Motor |
Voltage: |
3V/6V |
Diameter: |
16MM |
Brush Type: |
Brush |
Speed: |
8500-10400RPM |
Shaft Type: |
Customized |
Type: |
Gear Motor |
Voltage: |
3V/6V |
Diameter: |
16MM |
Brush Type: |
Brush |
Speed: |
8500-10400RPM |
Shaft Type: |
Customized |

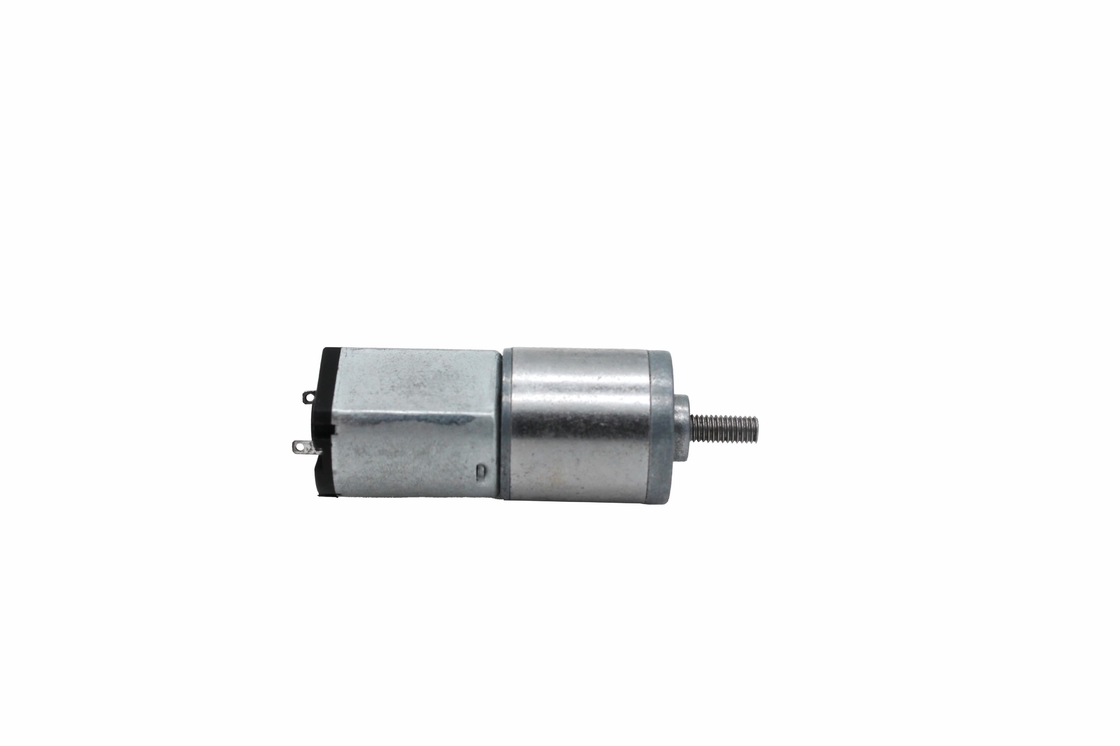

Service Robot Motor DC Spur Gear Motor Chinese Wholesale 3V/6V Mini DC Motor
Product Feature:
Very sturdy construction inside and outside. The outside shell is well build and has excellent access
The motor is Gear DC motor with micro-turbine worm, you can change the wiring-connection to change motor rotation (CW / CCW);
The reducer output shaft arranged vertically with the motor shaft, whole motor output.
The reducer output shaft arranged vertically with the motor shaft, whole motor output shaft relatively-short than general gear motor, widely used to be installed the dimensions requirements strictly occasion.
1. Description:
Product Highlights
Motor Data:
| Motor Model | Rated Voltage | No-load | Load | Stall | |||||
| current | speed | current | speed | torque | output | torque | current | ||
| V | A | rpm | A | rpm | kg.cm | W | Kg.cm | A | |
| JQGM-030003850 | 3 | ≤0.075 | 8500 | ≤0.28 | 6550 | 0.005 | 0.34 | ≥0.02 | ≥0.6 |
| JQGM-03000610400 | 6 | ≤0.065 | 10400 | ≤0.19 | 7800 | 0.005 | 0.39 | ≥0.018 | ≥0.4 |
Gearbox Data:
| Reduction stage | 3 | 4 | 5 | 6 | 7 |
| Reduction ratio | 10K,14K | 23K,28K,32K,40K | 45K,56K ,65K,79K,91K,112K | 130K ,159K,183K, 224K,257K,315K | 365K,448K, |
| Gearbox length | 11 | 12.5 | 14 | 15.5 | 17 |
| Gearbox efficiency | 73% | 65% | 59% | 53% | 48% |
2. Mechanical Dimension:MM
3. Typical Applications
IA:
Smart Lock,Smart closetool,Auto-curtain,Robot vacuum,Dishwasher
Office Equipment:
Cash registers, printer, Paper shredder ,Projector
Medical Wquipment:
Trolley, Adjustable bed ,Medical pump ,Blood shaker
Business Equipment:
New retail device ,Vending machine ,Car zip,smart lamp
Industrial Equipment:
Automatic valve ,Automatic door switch
Personal care :
Hairclipper,Massage chair ,hair curler
| |
IA | Personal Care |
| |
Robot | Smart Lock |
