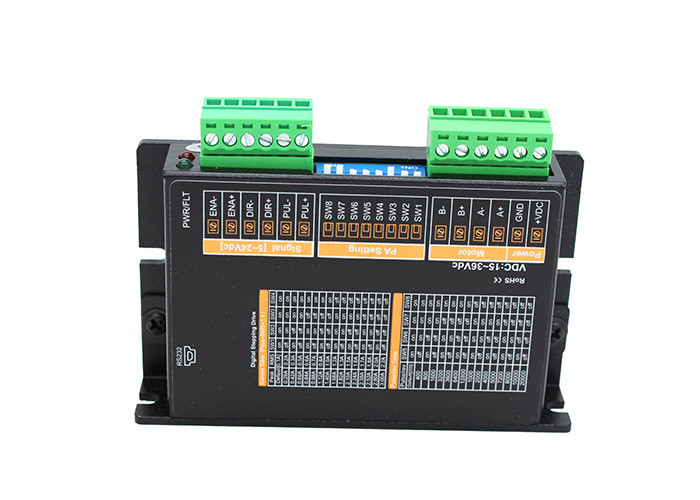

Micro Stepper Motor Driver Controller Nema 17 Nema 11 Nema 14

Name: Micro Stepper Motor Driver Controller Nema 17 Nema 11 Nema 14
Brand: JIUQI
SKU: DM422
Price: 8 USD
Availability: InStock
Rating: 4.6 (200 reviews)

Product Details

Place of Origin: Jiangsu, China (Mainland)

Brand Name: JIUQI

Certification: RoHS,ISO9001

Model Number: DM422

Payment & Shipping Terms

Minimum Order Quantity: 100PCS

Price: $8~$30/Unit

Packaging Details: with export carton or can be customized

Delivery Time: Trial orders :2 WEEKS Bulk orders: within 3 weeks

Payment Terms: T/T, Western Union,paypal

Supply Ability: 100000 PCS/MONTH

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    stepper motor nema 17 driver, nema 11 stepper motor driver, nema 14 stepper motor driver


Control Mode:	Pulse + Direction	Voltage:	12V
Weight:	180g	Material:	Plastic
Highlight:	Brushless Dc Motor Controller ,4 Wire Stepper Motor Controller	Product Name:	Motor Driver

Control Mode:	Pulse + Direction
Voltage:	12V
Weight:	180g
Material:	Plastic
Highlight:	Brushless Dc Motor Controller ,4 Wire Stepper Motor Controller
Product Name:	Motor Driver

Description

Micro Stepper Motor Driver Controller Nema 17 Nema 11 Nema 14

Micro Stepper Motor Driver Motor Controller Nema11 Nema14 Nema17 Motor Driver

High efficiency and low energy consumption
Smooth and accurate operation
High speed and high torque
Wide application
Low noise and long service life
Technical support and good aftermarket

1. Description:

Supply power voltage:DC12-36V(Max),Output:0.2A-2.2A
Current control: PID algorithm ,high speed and high torque output, low vibration ,low noise,low heating
Running current: 16 different current levels selectable
Control mode:Pulse +direction &Double pulse
Self Test
Protection: over voltage,under voltage, over current,open motor winding
Current reduce helt after 1 second when stop
Can startup 4 /6/8 lines stepper motors
High microstepping, 16 different microstepping levels selectable:200,400,800,1600,3200,6400,12800,25600,1000,2000,4000,5000,8000,10000,20000,25000step/rev

2. Specification:

Specification	DM422
Specification	Min	Type	Max	Unit
output voltage	0.2	-	2.2	A
Supply voltage	8	24	36	VDC
Control signal current	6	10	16	Ma
Step pulse frequency	0	-	300	KJz
Step pulse width	2	-	-	us
Direction signal width	100	-	-	us
Under Voltage protection	-	7.5	-	VDC
Under Voltage protection	-	42	-	VDC
Drive starting time	2	-	-	S
Insulation resistance	500			MΩ

3. Dimension:MM

4. Motor Diagram

5. Control signal connection

6. Swith selecting

Current setting: Microstepping setting:

7. Terms of trade

Terms of price	FOB,CIF,CFR,EXW,DDP,etc.
Terms of payment	100% T/T in advance for samples
Terms of payment	Bulk quantity payment way can be negotited
Warranty	12 months limited warranty once the items are delivered to the buyer.
Lead time	Usually within 2 weeks for trial orders, within 3 weeks for bulk orders.
Package	Cartons /Pallets
Place of loading	Shanghai, Ningbo, etc.
Shipment carrier	Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders.
Delivery time	Usually within 5 working days by Express 15-30 working days by vessel
