Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: JIUQI
Certification: RoHS,ISO9001
Model Number: 25BY412-25-Linear Stepper Motor
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: $4.5~$6.5/PCS
Packaging Details: with export carton . Bulk order with pallets
Delivery Time: Trial orders :2 WEEKS Bulk orders: within 3 weeks
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100000 PCS/MONTH
Gear Ratio: |
1:10 |
Phase: |
2 |
Voltage: |
3.2V |
Resistance: |
5Ω±7% |
Stroke: |
Max.5MM |
Weight: |
30g |
Highlight: |
Linear Motor For Valve Control, 25MM Small Gear Motor ,Actuator Motor |
Product Name: |
Linear Motor |
Gear Ratio: |
1:10 |
Phase: |
2 |
Voltage: |
3.2V |
Resistance: |
5Ω±7% |
Stroke: |
Max.5MM |
Weight: |
30g |
Highlight: |
Linear Motor For Valve Control, 25MM Small Gear Motor ,Actuator Motor |
Product Name: |
Linear Motor |

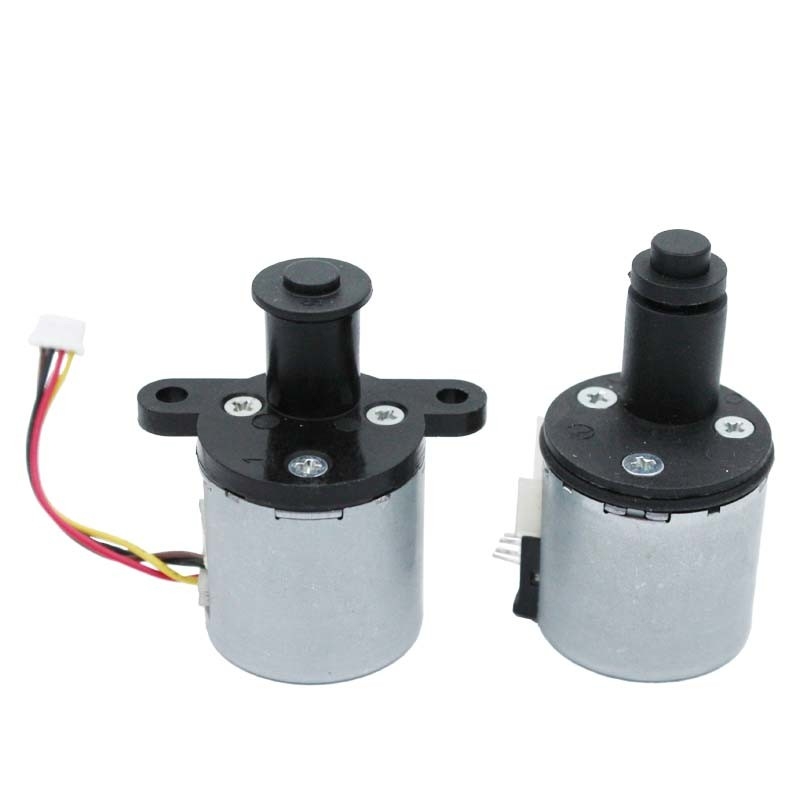

Mini PM25 Stepper Motor linear Motor For Valve Control presice position control
1. Description:
MOTOR JIUQI is always trying to become one leading company in micro-motor field ,no matter at developing , designing and manufacturing .Currently ,our main product including BYJ stepping motor ,PM stepping motor, SM motor. Moreover, relevant solution of components are available .Now, our product is in series production which used in household appliances and get recognition and honor.
Our products can be applied to printer ,advertisement instrument ,ATM machines, stage light equipment ,CNC machine, automatic assembly equipment, camera lenses, carving machine, cutting machine, electric vehicles, packing machine, industrial control, intelligent ball, laser engraving, textile machine ,game machine ,robots and etc .
2. Specification:
| Motor model | 25BY412-25 |
| voltage | 3.2V |
| Resistance | 5Ω±7% |
| Step angle | 7.5° |
| Exciting mode | 2-2P |
| Pull-out torque | 350Hz≥100N·m(2.6V)) |
| Insulation resistance | ≥100MΩ |
| Dielectric strength | AC600V 3mA 1S |
| Operating Temperature Range | -30℃-60℃ |
3. Mechanical Dimension:MM
4. Typical Applications
Refrigeration Industry :Air Conditioner, Fan
Monitoring Industry(CCTV) : Camera
Sanitary Ware: Automatic Toilet
Electric Generator : Valve Control
Other Industries & Applications : Robotics
5. Terms of trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
| Terms of payment | 100% T/T in advance for samples |
| Bulk quantity payment way can be negotited | |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Cartons /Pallets |
| Place of loading | Shanghai, Ningbo, etc. |
| Shipment carrier | Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
6. Our promise to our Customers:
