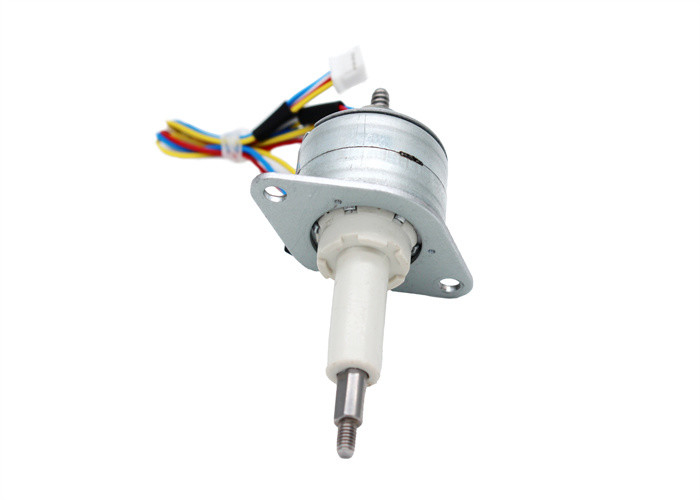

Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: JIUQI
Certification: RoHS,ISO9001
Model Number: 25BYZ-22
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: $7~$15/PCS
Packaging Details: with export carton . Bulk order with pallets
Delivery Time: Trial orders :2 WEEKS Bulk orders: within 3 weeks
Payment Terms: T/T, Western Union,paypal
Supply Ability: 200000 PCS/MONTH
STEP ANGLE(DEGREE): |
15 |
VOLTAGE: |
12V |
RESISTANCE: |
53±3% |
MAX TRAVEL: |
22MM |
PHASE: |
2 |
TYPE: |
PERMANENT MAGNET |
HIGH LIGHT: |
Electric Linear Actuator Motor,High Torque Stepper Motor,Threaded Shaft Linear Stepping Motor |
PRODUCT NAME: |
LINEAR MOTOR |
STEP ANGLE(DEGREE): |
15 |
VOLTAGE: |
12V |
RESISTANCE: |
53±3% |
MAX TRAVEL: |
22MM |
PHASE: |
2 |
TYPE: |
PERMANENT MAGNET |
HIGH LIGHT: |
Electric Linear Actuator Motor,High Torque Stepper Motor,Threaded Shaft Linear Stepping Motor |
PRODUCT NAME: |
LINEAR MOTOR |
Applications:Medical equipment,Printer,Scanner,
Gas range,Sewing machine,Auto meter,Robot,and so on.
2. Specification
| PN | Step angle | Voltage | Phase | Current | Resistance | Inductance | Push force | Start frequency | Rotate frequency | Push distance | Step length |
| (°) | VDC | mA | Ω | mH | g(200pps) | pps | pps | mm | mm | ||
| 25BYZ-22 | 15 | 12 | 2 | ≤250 | 53 | 43 | ≥2 | ≥500 | ≥600 | 22 | 0.0417 |
| 15 | 12 | 2 | ≤350 | 30 | 22 | ≥2 | ≥500 | ≥600 | 22 | 0.0417 | |
| 15 | 12 | 2 | ≤150 | 85 | 65 | ≥2 | ≥500 | ≥600 | 22 | 0.0417 | |
| 15 | 5 | 2 | ≤300 | 22 | 16 | ≥2 | ≥500 | ≥600 | 22 | 0.0417 | |
| 7.5 | 12 | 4 | ≤250 | 53 | 43 | ≥2 | ≥500 | ≥600 | 22 | 0.0209 | |
| 7.5 | 12 | 4 | ≤350 | 30 | 22 | ≥2 | ≥500 | ≥600 | 22 | 0.0209 | |
| 7.5 | 12 | 4 | ≤150 | 85 | 65 | ≥2 | ≥500 | ≥600 | 22 | 0.0209 | |
| 7.5 | 5 | 4 | ≤300 | 22 | 16 | ≥2 | ≥500 | ≥600 | 22 | 0.0209 |
3. Mechanical Dimension:MM
4. Typical Applications
· Medical Equipment
· Automatic Control
· 3D Printer
· Precision Calibration
· Precise Position Movement
5. Terms of trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
| Terms of payment | 100% T/T in advance for samples |
| Bulk quantity payment way can be negotited | |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Cartons /Pallets |
| Place of loading | Shanghai, Ningbo, etc. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
6. Shipping
7.Payment
