Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: JIUQI
Certification: RoHS,ISO9001
Model Number: HB42-JQ-15
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: $4~$10/PCS
Packaging Details: with export carton . Bulk order with pallets
Delivery Time: Trial orders :2 WEEKS Bulk orders: within 3 weeks
Payment Terms: T/T, Western Union,paypal
Supply Ability: 200000 PCS/MONTH
Step Angle: |
1.8° |
Motor Size: |
42mm |
Current: |
0.4A |
Holding Torque: |
0.17N.m |
Phase: |
2 |
Type: |
Hybrid |
Highlight: |
Hybrid Stepper Motor,3D Printer Stepper Motor,57MM NEMA 23 Stepper Motorr |
PRODUCT NAME: |
42MM HYBRID MOTOR |
Step Angle: |
1.8° |
Motor Size: |
42mm |
Current: |
0.4A |
Holding Torque: |
0.17N.m |
Phase: |
2 |
Type: |
Hybrid |
Highlight: |
Hybrid Stepper Motor,3D Printer Stepper Motor,57MM NEMA 23 Stepper Motorr |
PRODUCT NAME: |
42MM HYBRID MOTOR |

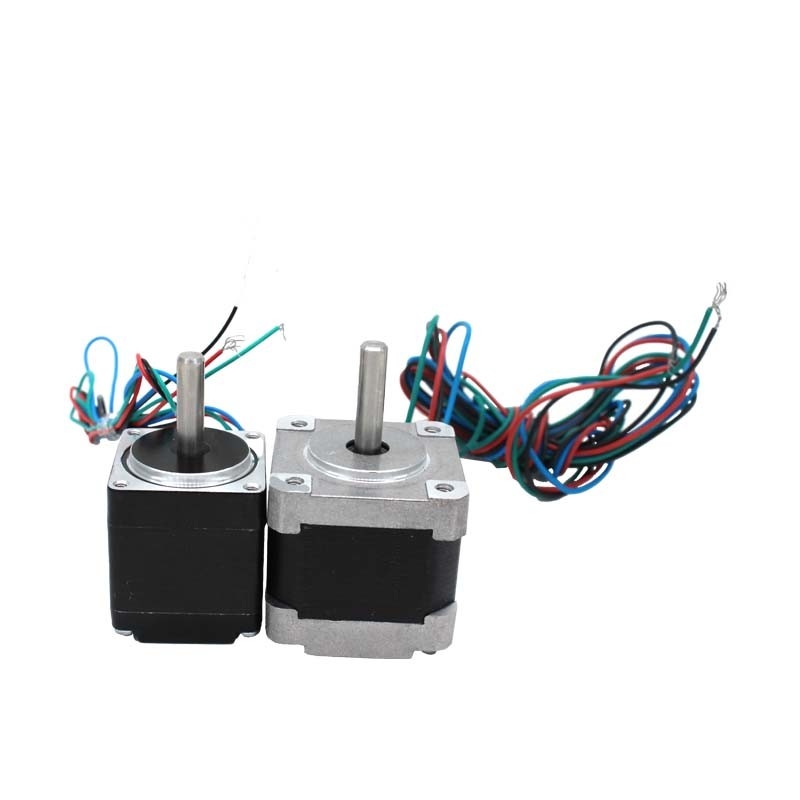

28MM/35MM/42MM/57MM/86MM Hybrid Stepper Motor /Stepping Motor
42 stepper motor description
The stepper motor adopts unique precision technogy of stator rotor , its structure is accurate , even and smooth , high precision inner hole ,smooth and accurate running process without losing step . The motor was inspected with precision instrument before shipping.
Note:
Please make sure the motor connect to a constant current or chopper driver before testing.
Connecting the motor directly to a power supply will break the motor .
1. Description :
2. Specification
| PN | Step angle | Current | Holding torque | weight | No. of leads | Motor length |
| (°) | A | N.m | kg | mm | ||
| HB42-JQ-1 | 1.8 | 0.4 | 0.17 | 0.15 | 4 | 26 |
| HB42-JQ-2 | 1.8 | 0.25 | 0.2 | 0.2 | 6 | 31 |
| HB42-JQ-3 | 1.8 | 1.8 | 0.28 | 0.24 | 4 | 38 |
| HB42-JQ-4 | 1.8 | 0.9 | 0.4 | 0.34 | 6 | 50 |
| HB42-JQ-5 | 1.8 | 1.8 | 0.8 | 0.5 | 4 | 60 |
3. Mechanical Dimension:MM
4. Performance curve
5. Typical Applications
6. Terms of trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
| Terms of payment | 100% T/T in advance for samples |
| Bulk quantity payment way can be negotited | |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Cartons /Pallets |
| Place of loading | Shanghai, Ningbo, etc. |
| Shipment carrier | Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
