Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: JIUQI
Certification: RoHS,ISO9001
Model Number: 35BY412-02G
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: $3~$10/PCS
Packaging Details: with export carton . Bulk order with pallets
Delivery Time: Trial orders :2 WEEKS Bulk orders: within 3 weeks
Payment Terms: T/T, Western Union,paypal
Supply Ability: 200000 PCS/MONTH
STEP ANGLE(DEGREE): |
7.5±7% |
PHASE: |
2 |
VOLTAGE: |
24V |
RESISTANCE: |
60Ω |
ROTATION: |
CW/CCW |
WEIGHT: |
60G |
TYPE: |
PERMANENT MAGNET |
PRODUCT NAME: |
STEPPER MOTOR |
STEP ANGLE(DEGREE): |
7.5±7% |
PHASE: |
2 |
VOLTAGE: |
24V |
RESISTANCE: |
60Ω |
ROTATION: |
CW/CCW |
WEIGHT: |
60G |
TYPE: |
PERMANENT MAGNET |
PRODUCT NAME: |
STEPPER MOTOR |

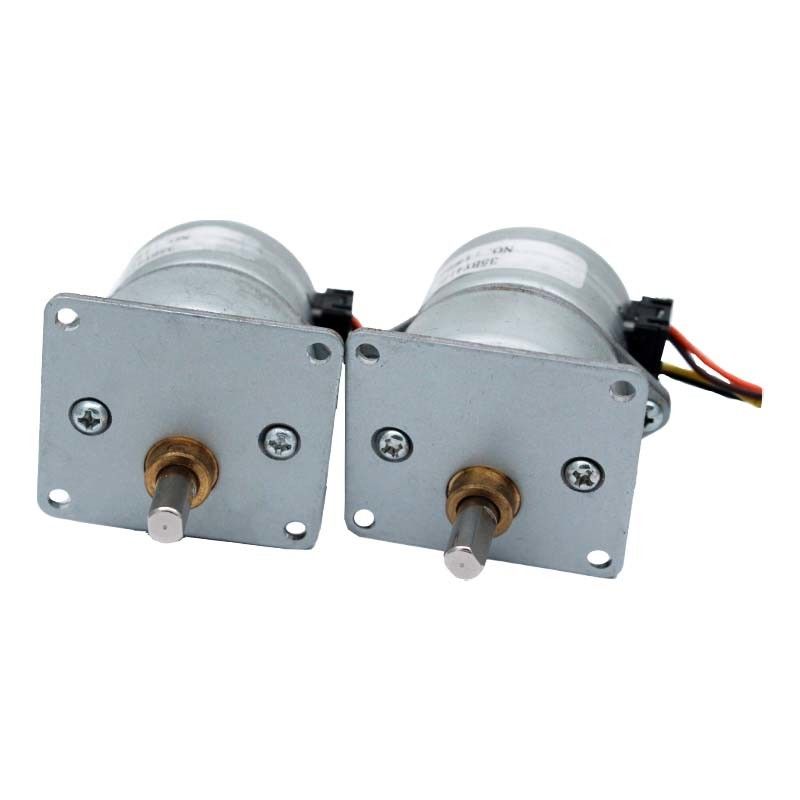

35MM Stepper Motor With Metal Gearbox 24V Pearmanent Manget Motor
1.Application:
Office Automation Printers, Copiers, Data storage
Medical Applications Pill dispensing Analysers
Telecommunication Antennae positioning Switching lines
Other Industries & Applications Robotics
2. Description:
Product Highlights
Motor Size :35MM
Phase :4
Step angle:7.5 degree
Pull-out torque can be customized
customizable front plate available
Special features– Lead Screw, gearbox, pinion gear, connectors, shaft modifications
Low cost, high efficiency, precise step angle, and low noise
JIUQI MOTOR has various Permanent Magnet Steppers(PM Stepper Motors) ,Size ranges from 15mm to 42mm that are excellent in high continuous torque and equiped with maintenance-free bearings. Bipolar & Unipolar drive circuits are available.
3. Specification:
| Motor model | 35BY412-02G |
| voltage | 24V |
| Resistance | ＞60Ω |
| Step angle | 7.5° |
| Exciting mode | 2-2P |
| Pull-out torque | 100PPS≥20kg |
| Insulation resistance | ≥100MΩ |
| Dielectric strength | AC 600V 1mA 1S |
| Operating Temperature Range | -30℃-60℃ |
| Gear ratio | 135 |
4. Mechanical Dimension:MM
5. Terms of trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
|
Terms of payment |
100% T/T in advance for samples |
| Bulk quantity payment way can be negotited | |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Cartons /Pallets |
| Place of loading | Shanghai, Ningbo, etc. |
| Shipment carrier | Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
6. FAQ
Questions 1:What's your service time :
Answer :24 hours online service. Email will be replied within 24 hours
Questions 2 :Do you offer OEM or ODM service ?
Answer:Yes. ODM products according to customized design and specification as well as OEM products.
Questions 3: Can i get a sample ?
Answer: Sure .we can provide samples according to customers' requirements but customer should pay the sample charge .
Questions 4: Do you have certificate ?
Answer:Yes ,we have CE and TUV certificate .
Question 5 :Are you a factory ?
Answer:Yes , we have motor experience more than 10 years .
