Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: JIUQI
Certification: RoHS,ISO9001
Model Number: 35BYZ-20
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: $7~$15/PCS
Packaging Details: with export carton . Bulk order with pallets
Delivery Time: Trial orders :2 WEEKS Bulk orders: within 3 weeks
Payment Terms: T/T, Western Union,paypal
Supply Ability: 200000 PCS/MONTH
STEP ANGLE(DEGREE): |
7.5 |
VOLTAGE: |
12V |
RESISTANCE: |
35±10% |
MAX TRAVEL: |
20MM |
PHASE: |
2 |
TYPE: |
PERMANENT MAGNET |
HIGH LIGHT: |
Electric Linear Actuator Motor,High Torque Stepper Motor,Threaded Shaft Linear Stepping Motor |
PRODUCT NAME: |
35MM LINEAR MOTOR |
STEP ANGLE(DEGREE): |
7.5 |
VOLTAGE: |
12V |
RESISTANCE: |
35±10% |
MAX TRAVEL: |
20MM |
PHASE: |
2 |
TYPE: |
PERMANENT MAGNET |
HIGH LIGHT: |
Electric Linear Actuator Motor,High Torque Stepper Motor,Threaded Shaft Linear Stepping Motor |
PRODUCT NAME: |
35MM LINEAR MOTOR |

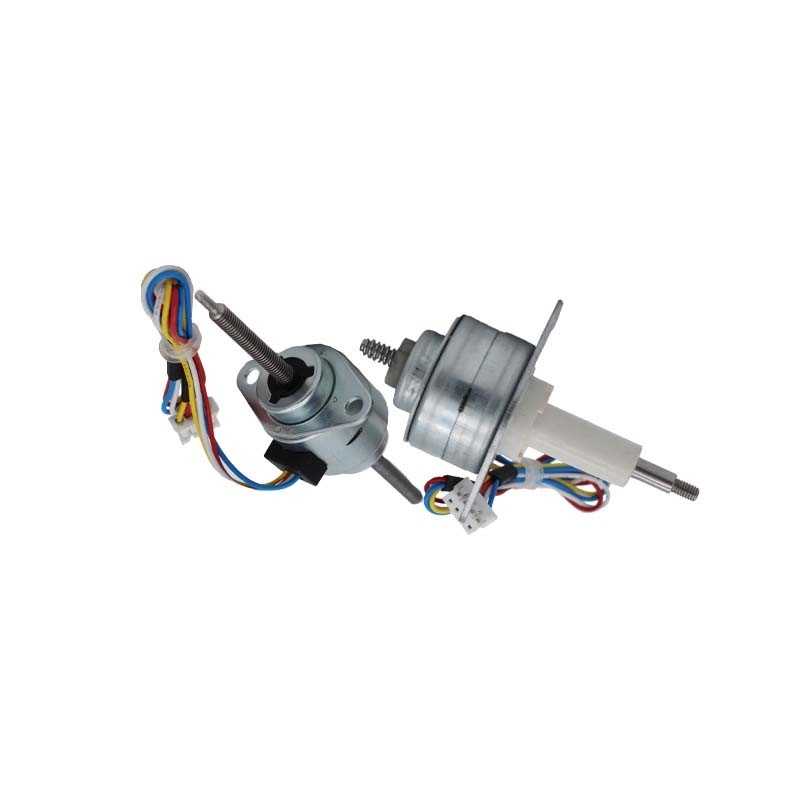

35BYZ linear motor with a simple mechanism, low noise, high precision and long life characteristics. Widely used in the banking and office equipment, telecom equipment, printers, copiers, fax machines,
scanners, textile machinery, medical, automatic control, building automation valves, massage chairs and
stage lighting, automotive, surveillance systems, electric advertising, electric curtains, science and
education equipment, air conditioning and other fields.
2. Specification
| PN | Step angle | Voltage | Phase | Current | Resistance | Inductance | Push force | Start frequency | Rotate frequency | Push distance | Step length |
| (°) | VDC | mA | Ω | mH | g(200pps) | pps | pps | mm | mm | ||
| 35BYZ-20 | 15 | 12 | 2 | ≤250 | 53 | 43 | ≥5 | ≥500 | ≥600 | 20 | 0.0417 |
| 15 | 12 | 2 | ≤350 | 30 | 22 | ≥5 | ≥500 | ≥600 | 20 | 0.0417 | |
| 15 | 12 | 2 | ≤150 | 85 | 65 | ≥5 | ≥500 | ≥600 | 20 | 0.0417 | |
| 15 | 5 | 2 | ≤300 | 22 | 16 | ≥5 | ≥500 | ≥600 | 20 | 0.0417 | |
| 7.5 | 12 | 4 | ≤250 | 53 | 43 | ≥5 | ≥500 | ≥600 | 20 | 0.02085 | |
| 7.5 | 12 | 4 | ≤350 | 30 | 22 | ≥5 | ≥500 | ≥600 | 20 | 0.02085 | |
| 7.5 | 12 | 4 | ≤150 | 85 | 65 | ≥5 | ≥500 | ≥600 | 20 | 0.02085 | |
| 7.5 | 5 | 4 | ≤300 | 22 | 16 | ≥5 | ≥500 | ≥600 | 20 | 0.02085 |
3. Mechanical Dimension:MM
4. Typical Applications
· Medical Equipment
· Automatic Control
· 3D Printer
· Precision Calibration
· Precise Position Movement
5. Terms of trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
| Terms of payment | 100% T/T in advance for samples |
| Bulk quantity payment way can be negotited | |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Cartons /Pallets |
| Place of loading | Shanghai, Ningbo, etc. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
