Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: JIUQI
Certification: RoHS,ISO9001
Model Number: 35BYJ46-3
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: $2~$5/PCS
Packaging Details: with export carton . Bulk order with pallets
Delivery Time: Trial orders :2 WEEKS Bulk orders: within 3 weeks
Payment Terms: T/T, Western Union,paypal
Supply Ability: 200000 PCS/MONTH
STEP ANGLE(DEGREE): |
7.5 |
VOLTAGE: |
24V |
RESISTANCE: |
300 |
GEAR RATIO: |
1:85 |
PHASE: |
2 |
TYPE: |
PERMANENT MAGNET |
HIGH LIGHT: |
Micro Geared Motor , 24V Permanent Magnet Dc Motor , 1/64 Stepper Motor |
PRODUCT NAME: |
GEARED MOTOR |
STEP ANGLE(DEGREE): |
7.5 |
VOLTAGE: |
24V |
RESISTANCE: |
300 |
GEAR RATIO: |
1:85 |
PHASE: |
2 |
TYPE: |
PERMANENT MAGNET |
HIGH LIGHT: |
Micro Geared Motor , 24V Permanent Magnet Dc Motor , 1/64 Stepper Motor |
PRODUCT NAME: |
GEARED MOTOR |

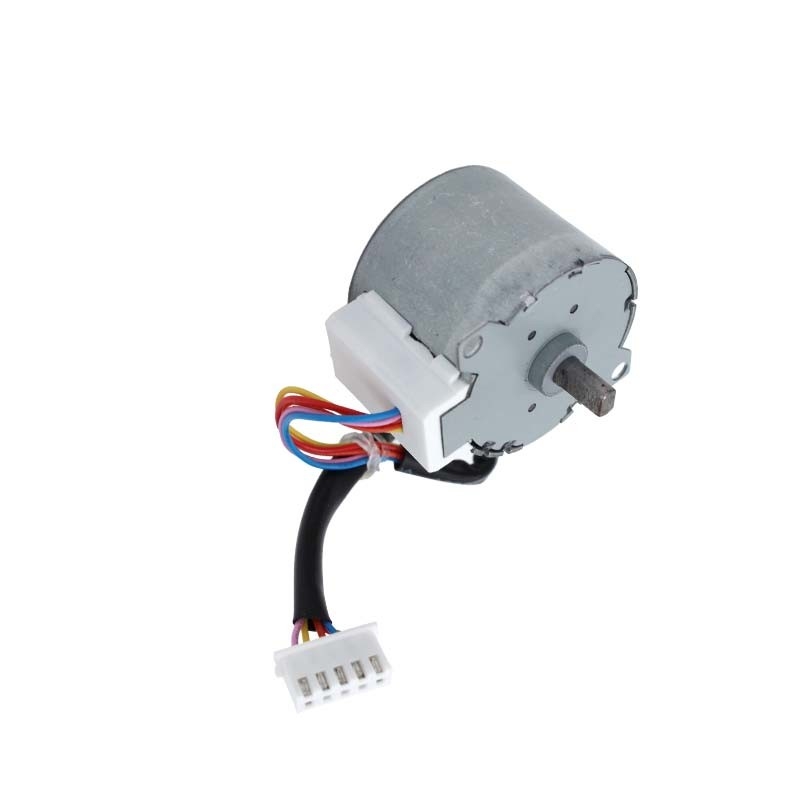

1. Description:
Product Highlights
Motor size:35MM
Drive method :Unipolar
Step angle:7.5 degree
Pull-out torque can be customized
customizable front plate available
Special features– Lead Screw, gearbox, pinion gear, connectors, shaft modifications
Low cost, high efficiency, precise step angle, and low noise
2. Specification:
| Motor model | 35BYJ46-3 |
| voltage | 24V |
| Resistance | 300Ω±7% |
| Step angle | 7.5° |
| Exciting mode | 1-2P |
| Pull-in torque | 100Hz≥196mN·m |
| Insulation resistance | ≥100MΩ |
| Dielectric strength | AC 500V 1min |
| Operating Temperature Range | -30℃-60℃ |
| weight | 45g(ref.) |
3. Mechanical Dimension:MM
4. Typical Applications
5.Terms of trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
| Terms of payment | 100% T/T in advance for samples |
| Bulk quantity payment way can be negotited | |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Cartons /Pallets |
| Place of loading | Shanghai, Ningbo, etc. |
| Shipment carrier | Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
