Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: JIUQI
Certification: RoHS,ISO9001
Model Number: 25BY45-20
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: $2~$5/PCS
Packaging Details: with export carton . Bulk order with pallets
Delivery Time: Trial orders :2 WEEKS Bulk orders: within 3 weeks
Payment Terms: T/T, Western Union,paypal
Supply Ability: 200000 PCS/MONTH
STEP ANGLE(DEGREE): |
15 |
PHASE: |
4 |
VOLTAGE: |
24V |
RESISTANCE: |
16Ω±10% |
ROTATION: |
CW/CCW |
WEIGHT: |
45G |
TYPE: |
PERMANENT MAGNET |
PRODUCT NAME: |
STEPPER MOTOR |
STEP ANGLE(DEGREE): |
15 |
PHASE: |
4 |
VOLTAGE: |
24V |
RESISTANCE: |
16Ω±10% |
ROTATION: |
CW/CCW |
WEIGHT: |
45G |
TYPE: |
PERMANENT MAGNET |
PRODUCT NAME: |
STEPPER MOTOR |

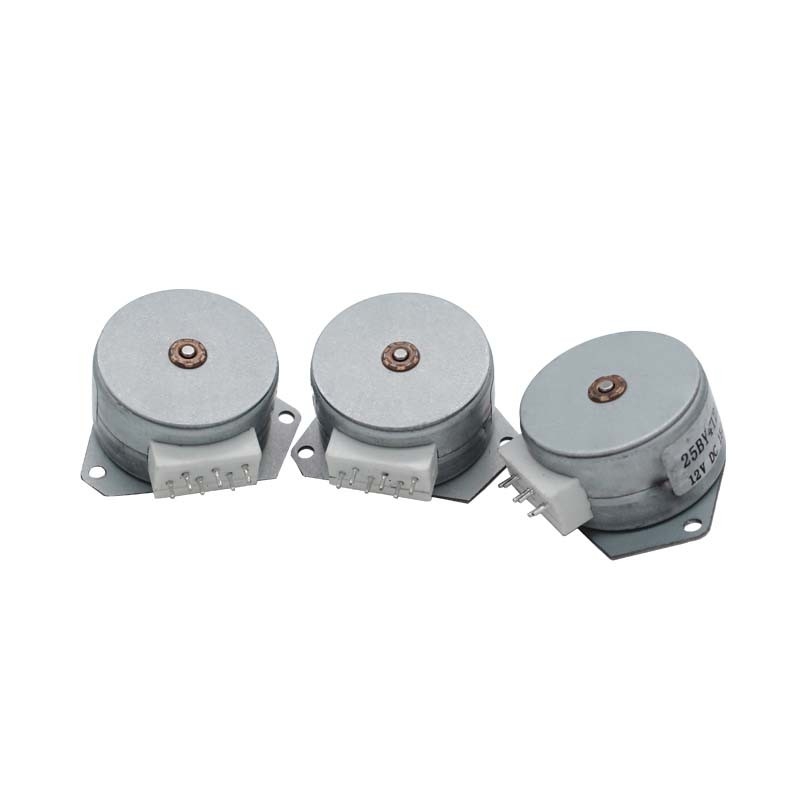

Valve Control Stepper Motor 25MM PM Stepping Motor Customized Motor
1. Description:
Motor O.D. :25MM (15MM,20MM,35MM,42 MM are available too)
Drive method :Unipolar (Bipolar is available)
Step angle:15 degree(7.5 degree is available)
Pull-out torque/front plate ,connect method can be customized
JIUQI MOTOR is a motor manuafture in China.Our team has more than 15 years experience in motor ,no matter in design ,development or quality control .We can provide a professional recommendation once get inquiry from our customer .Welcome to contact us if you have motor inquiry .We will provide a competitive price to you .
2. Specification:
| Motor model | 25BY45-20 |
| voltage | 24V |
| Resistance | 16Ω±10% |
| Step angle | 15° |
| Exciting mode | 2-2P |
| Pull-out torque | 2000Hz≥3.53(mN.m) |
| Insulation resistance | ≥100MΩ |
| Dielectric strength | AC 500V 1min |
| Operating Temperature Range | -30℃-60℃ |
| weight | 45g(ref.) |
3. Mechanical Dimension:MM
4. Typical Applications
•Office appliances
•Medical equipment
•Automotive •Machining tools
•Valve control
•Precise optical instrument
5. Terms of trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
|
Terms of payment |
100% T/T in advance for samples |
| Bulk quantity payment way can be negotited | |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Cartons /Pallets |
| Place of loading | Shanghai, Ningbo, etc. |
| Shipment carrier | Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
