Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: JIUQI
Certification: RoHS,ISO9001
Model Number: 25BY46-2
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: $2~$5/PCS
Packaging Details: with export carton . Bulk order with pallets
Delivery Time: Trial orders :2 WEEKS Bulk orders: within 3 weeks
Payment Terms: T/T, Western Union,paypal
Supply Ability: 200000 PCS/MONTH
STEP ANGLE(DEGREE): |
7.5 |
PHASE: |
4 |
VOLTAGE: |
12V |
RESISTANCE: |
150Ω±10% |
ROTATION: |
CW/CCW |
WEIGHT: |
45G |
TYPE: |
PERMANENT MAGNET |
PRODUCT NAME: |
STEPPER MOTOR |
STEP ANGLE(DEGREE): |
7.5 |
PHASE: |
4 |
VOLTAGE: |
12V |
RESISTANCE: |
150Ω±10% |
ROTATION: |
CW/CCW |
WEIGHT: |
45G |
TYPE: |
PERMANENT MAGNET |
PRODUCT NAME: |
STEPPER MOTOR |

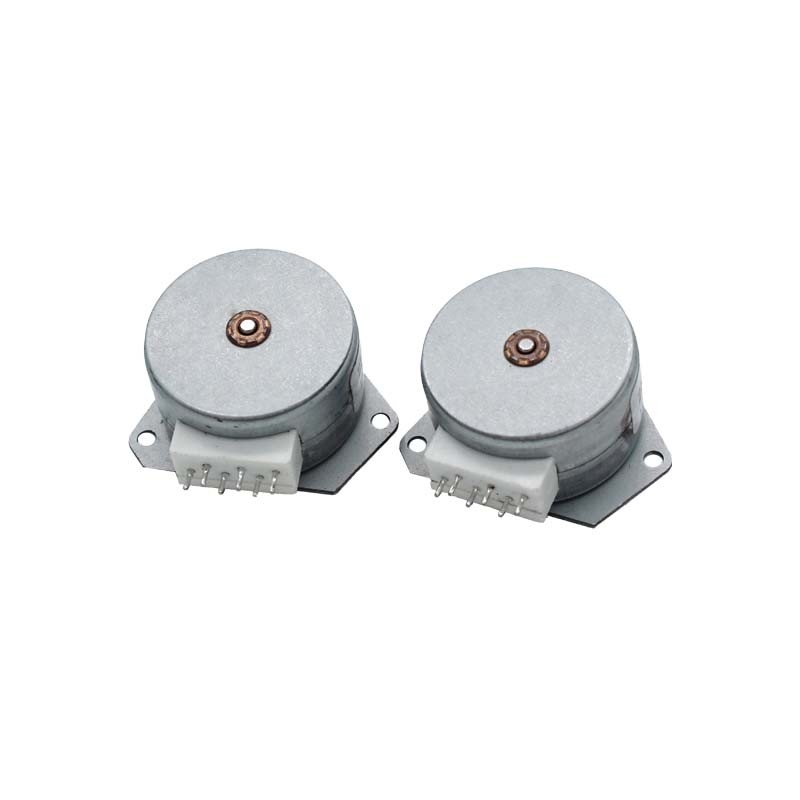

High Precision 7.5 Degree Stepper Motor Low Noise 25MM Motor For Air Conditioner
1. Description:
reducer motor is the use of stepper motor and reducer special connection of special products. Suitable for laser instrument, medical equipment, optical fiber splicer, etc.. Matching deceleration
The speed decreases and the torque increases.
All parts of the product are processed in the precision equipment, while the use of advanced and reliable assembly process, which is the product with high transmission efficiency, low noise, high reliability characteristics
2. Specification:
| Motor model | 25BY412-2 |
| voltage | 12V |
| Resistance | 150Ω±10% |
| Step angle | 7.5° |
| Exciting mode | 2-2P |
| Pull-out torque | 100Hz≥2.45mN.m |
| Insulation resistance | ≥100MΩ |
| Dielectric strength | AC 1800V 3mA 1S |
| Operating Temperature Range | -30℃-60℃ |
| weight | 45g(ref.) |
Motor O.D. :25MM (15MM,20MM,35MM,42MM are available too)
Drive method :Unipolar (Bipolar is available)
Step angle:15 degree(7.5 degree is available)
Pull-out torque/front plate ,connect method can be customized
JIUQI MOTOR is a motor manuafture in China.Our team has more than 15 years experience in motor ,no matter in design ,development or quality control .We can provide a professional recommendation once get inquiry from our customer .Welcome to contact us if you have motor inquiry .We will provide a competitive price to you .
3. Mechanical Dimension:MM
4. Typical Applications
5. Terms of trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
|
Terms of payment |
100% T/T in advance for samples |
| Bulk quantity payment way can be negotited | |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Cartons /Pallets |
| Place of loading | Shanghai, Ningbo, etc. |
| Shipment carrier | Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
6. FAQ
Questions 1:What's your service time :
Answer :24 hours online service. Email will be replied within 24 hours
Questions 2 :Do you offer OEM or ODM service ?
Answer:Yes. ODM products according to customized design and specification as well as OEM products.
Questions 3: Can i get a sample ?
Answer: Sure .we can provide samples according to customers' requirements but customer should pay the sample charge .
Questions 4: Do you have certificate ?
Answer:Yes ,we have CE and TUV certificate .
Question 5 :Are you a factory ?
Answer:Yes , we have motor experience more than 10 years .
