Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: JIUQI
Certification: RoHS,ISO9001
Model Number: 25BY45-20
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: $2~$5/PCS
Packaging Details: with export carton . Bulk order with pallets
Delivery Time: Trial orders :2 WEEKS Bulk orders: within 3 weeks
Payment Terms: T/T, Western Union,paypal
Supply Ability: 200000 PCS/MONTH
STEP ANGLE(DEGREE): |
15 |
PHASE: |
4 |
VOLTAGE: |
24V |
RESISTANCE: |
16Ω±10% |
ROTATION: |
CW/CCW |
WEIGHT: |
45G |
TYPE: |
PERMANENT MAGNET |
PRODUCT NAME: |
STEPPER MOTOR |
STEP ANGLE(DEGREE): |
15 |
PHASE: |
4 |
VOLTAGE: |
24V |
RESISTANCE: |
16Ω±10% |
ROTATION: |
CW/CCW |
WEIGHT: |
45G |
TYPE: |
PERMANENT MAGNET |
PRODUCT NAME: |
STEPPER MOTOR |

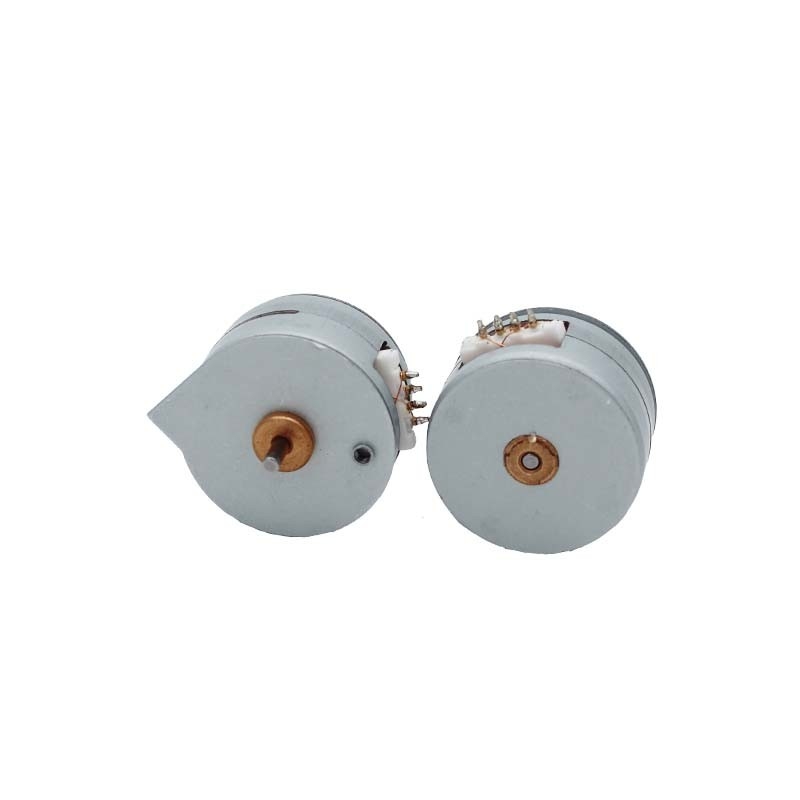

Sanitary Appliance Motor 24V Mini Stepper Motor 2-2 Phase Stepping Motor
Corresponding output devices such as worm and screw.
Because of its small size, high precision, and easy control, this miniature stepper motor is widely used in cameras, optical instruments, lenses, flashlights, precision medical equipment, automatic door locks and other fields.
1. Description:
JIUQI MOTOR is a motor manuafture in China.Our team has more than 15 years experience in motor ,no matter in design ,development or quality control .We can provide a professional recommendation once get inquiry from our customer .Welcome to contact us if you have motor inquiry .We will provide a competitive price to you .
JIUQI MOTOR has various Permanent Magnet Steppers(PM Stepper Motors) ,Size ranges from 15mm to 42mm that are excellent in high continuous torque and equiped with maintenance-free bearings. Bipolar & Unipolar drive circuits are available.25MM Motor details shown as below:
Motor O.D. :25MM
Drive method :Unipolar
Step angle:15 degree
Pull-out torque can be customized
customizable front plate available
Special features– Lead Screw, gearbox, pinion gear, connectors, shaft modifications
Low cost, high efficiency, precise step angle, and low noise
2. Specification:
| Motor model | 25BY45-20 |
| voltage | 24V |
| Resistance | 16Ω±10% |
| Step angle | 15° |
| Exciting mode | 2-2P |
| Pull-out torque | 2000Hz≥3.53(mN.m) |
| Insulation resistance | ≥100MΩ |
| Dielectric strength | AC 500V 1min |
| Operating Temperature Range | -30℃-60℃ |
| weight | 45g(ref.) |
3. Mechanical Dimension:MM
4. Typical Applications
•Office appliances
•Medical equipment
•Automotive •Machining tools
•Valve control
•Precise optical instrument
5. Terms of trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
|
Terms of payment |
100% T/T in advance for samples |
| Bulk quantity payment way can be negotited | |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Cartons /Pallets |
| Place of loading | Shanghai, Ningbo, etc. |
| Shipment carrier | Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
6.Our promise to our customer
