Model Number: JQHS-35-2
Payment & Shipping Terms
Minimum Order Quantity: 100PCS
Price: $30~$50/PCS
Packaging Details: with export carton . Bulk order with pallets
Delivery Time: Trial orders :2 WEEKS Bulk orders: within 3 weeks
Payment Terms: T/T, Western Union,paypal
Supply Ability: 50000 PCS/MONTH
Type: |
Hybrid |
Phase: |
2 |
Voltage: |
1.2/2.8 |
Step Angle: |
1.8 Degree |
Current/phase: |
0.31/1.33 |
Suitable Motor: |
Nema14 Stepper Motor |
Highlight: |
Planetary Stepper Motor,Gearebox,Gear Reducer |
Product Name: |
Hybrid Motor With Planetary Gearbox |
Type: |
Hybrid |
Phase: |
2 |
Voltage: |
1.2/2.8 |
Step Angle: |
1.8 Degree |
Current/phase: |
0.31/1.33 |
Suitable Motor: |
Nema14 Stepper Motor |
Highlight: |
Planetary Stepper Motor,Gearebox,Gear Reducer |
Product Name: |
Hybrid Motor With Planetary Gearbox |

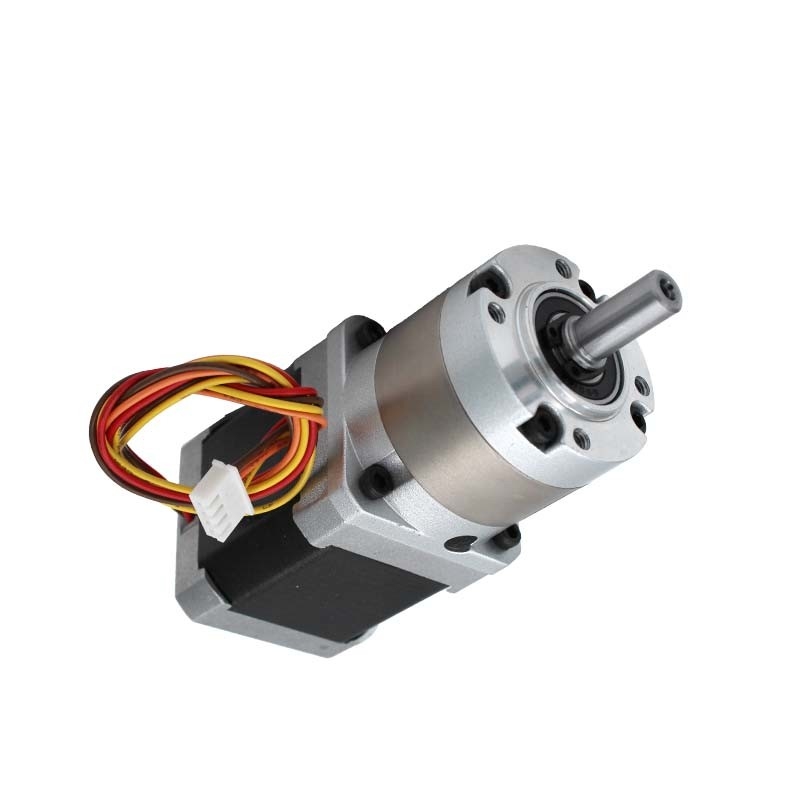

Round Gear Planetary Reducer With Hybrid Motor High Precision Gearbox
1. Genernal Specification:
| Housing Material | Metal |
| Bearing at Output | Ball Bearings |
| Max.Radial Load(10mm from flange) | ≤100N |
| Max.Shaft Axial Load | ≤50N |
| Radial Play of Shaft (near to Flange) | ≤0.07mm |
| Axial Play of Shaft | ≤0.3mm |
2. JQHS-20-1 Stepper Motor specification
| Model No. | Rated Voltage | Current | Resistance | Inductance | Holding Torque | # of Leads | Rotor Inertia | Motor Weight |
| /Phase | /Phase | /Phase | ||||||
| V | A | Ω | mH | g.cm | No. | g.cm | Kg | |
| JQHS-35-1-1 | 1.2 | 0.31 | 38.5 | 21 | 1.6 | 6 | 35 | 0.22 |
| JQHS-35-1-2 | 2.8 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | 35 | 0.22 |
3. Planetary Gearbox Specifications:
| Reduction ratio | 3.71 | 5.18 | 14 | 19 | 27 | 51 | 71 | 100 | 139 |
| Number of gear trains | 1 | 2 | 3 | ||||||
| Length(L2) mm | 27 | 34.2 | 41.1 | ||||||
| Max.rated torque kg.cm | 20 | 30 | 50 | ||||||
| Short time permissible torque kg.cm | 60 | 90 | 180 | ||||||
| Efficiency | 90% | 81% | 73% | ||||||
| Backlash at no-load | 0.5° | 1.0° | 1.5° | ||||||
| Weight g | 158 | 197 | 236 | ||||||
4. Dimension
5. Typical Applications
6. Terms of trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
| Terms of payment | 100% T/T in advance for samples |
| Bulk quantity payment way can be negotited | |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Cartons /Pallets |
| Place of loading | Shanghai, Ningbo, etc. |
| Shipment carrier | Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
